Munsch MAX 18 Extruder K07785

Product no.: 1030118

Munsch MAX 18 hand extrusion welder

This extrusion welder is especially suitable for large welds and for welding thick materials.

• 360° rotatable welding nozzle
• Brushless preheating blower with standby-function and automatic shut-down
• Separate digital temperature control for the air and the melt
• Comfortable user menu with automatic temperature setting

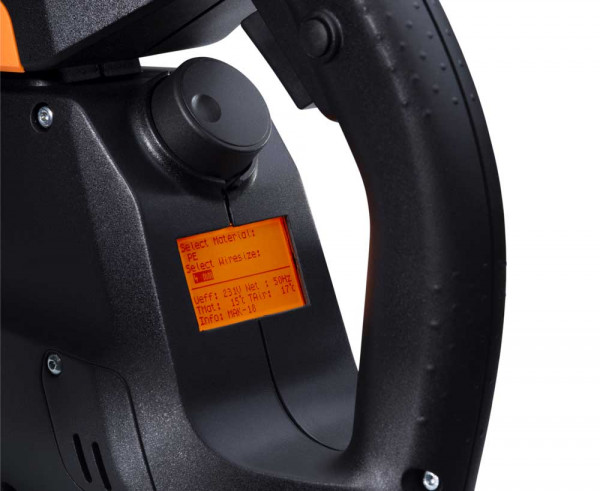

• Display with menu control
• Three materials preset, more program spaces free to set your own material
• Programmability with memory function

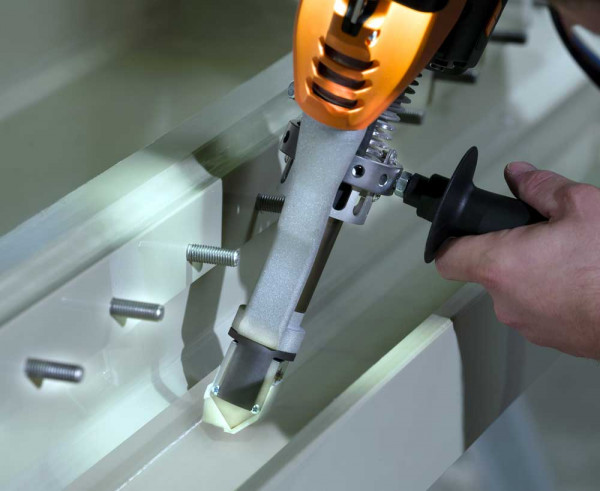

• Dual beam high-power LEDs
• Integrated machine stand

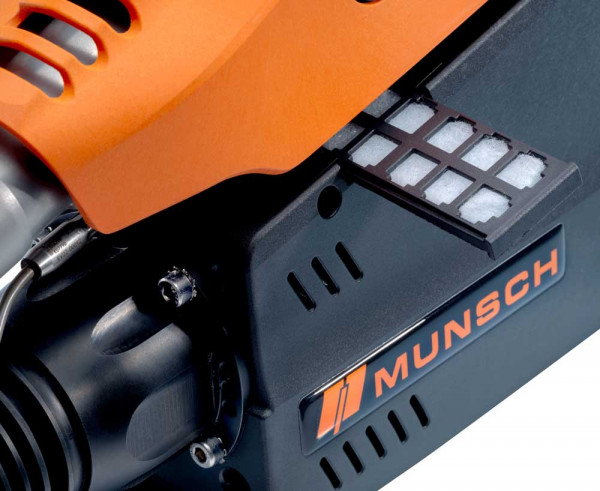

• Integrated dust-filter for coarse dust
• WiFi-connectivity

Content

• Extruder Munsch MAX-18
• 1 nozzle for a fillet weld (a = 7mm, for 10 mm thick sheets, 40 x 30 mm)
• 1 nozzle for film / foil welds (width 25 mm, 40 x 30 mm)
• 1 unshaped nozzle (40 x 40 mm)
• Manual

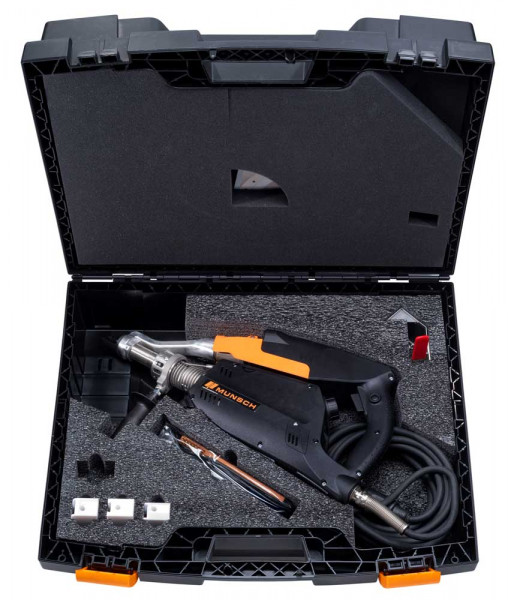

• Transport Case

Technical Data

Voltage	230 V
Power catridge heater	400 W
Power hot air blower	2.300 W
Position of the air nozzle	360° rotatable
Weld material	3 mm or 4 mm welding rod
Application range	wall thickness 4 - 20 mm
Max. welding rate	1,300 g/h at 3 mm 2,200 g/h at 4 mm
Length	approx. 640 mm
Weigth	approx. 5,300 g

Suitable for thermoplastic materials:

PE, PP, PVDF

You will find matching welding shoes here...

Manual


Price:

6.515,25 EUR

19 % VAT incl. excl. Shipping costs
